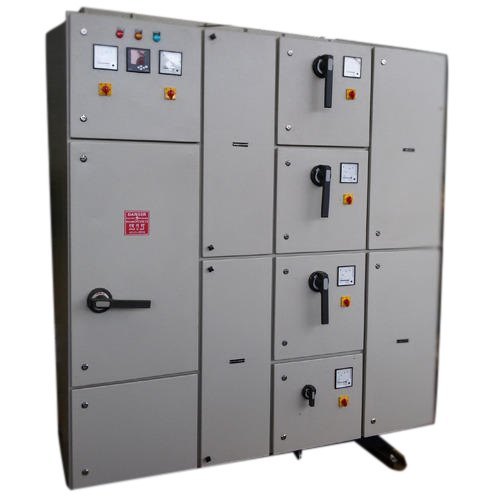

Customized Power Distribution Boards for Safe, Reliable and Organized Electrical Power Distribution
E-Tech Power manufactures Power Distribution Boards (PDBs) for industrial, commercial and infrastructure electrical systems. Our distribution boards are designed to receive electrical power from an incoming source and distribute it safely to multiple outgoing circuits, equipment and electrical loads.
A properly engineered Power Distribution Board provides an organized arrangement of incoming protection, busbars, outgoing feeders, circuit protection, metering and isolation according to the electrical system requirements.
Depending on the application, we can provide Main Distribution Boards (MDB), Sub Distribution Boards (SDB), Industrial Distribution Boards, Commercial Distribution Boards and customized Power Distribution Boards.
The final configuration is selected according to the required voltage, current, number of feeders, fault level, installation environment, protection scheme, metering requirements and future expansion needs.
E-Tech Power serves customers across Delhi, Noida, Greater Noida, Ghaziabad, Faridabad and Gurugram.
What Is a Power Distribution Board?
A Power Distribution Board (PDB) is an electrical panel that receives power from an incoming source and distributes it to multiple outgoing circuits or loads.
The distribution board provides a centralized location for:
- Electrical power distribution
- Circuit protection
- Isolation
- Feeder control
- Metering
- Load management
- Fault isolation
A typical arrangement can be represented as:
Incoming Supply → Main Protection → Busbar → Outgoing Feeders → Loads
The actual arrangement depends on the electrical design and project requirements.
How Does a Power Distribution Board Work?
The incoming electrical supply enters the distribution board through the main incomer.
The incomer may be equipped with suitable protection and isolation equipment such as an ACB, MCCB or isolator, depending on the system design.
Power is then distributed through the internal busbar system to individual outgoing feeders.
Each outgoing feeder can have its own protective device according to the connected load.
For example:
Incoming Supply
↓
Main ACB/MCCB
↓
Copper/Aluminium Busbar
↓
Outgoing MCCB/MCB Feeders
↓
Electrical Loads
This arrangement allows individual circuits to be protected and isolated without necessarily shutting down the entire distribution system, subject to the system design and operating conditions.
Types of Power Distribution Boards
Main Distribution Board
A Main Distribution Board (MDB) is generally installed at the main distribution point of a facility.
It receives power from the main source and distributes it to major downstream electrical feeders.
Typical applications include:
- Industrial plants
- Commercial buildings
- Large facilities
- Hospitals
- Warehouses
- Infrastructure projects
The MDB may contain a main incomer, bus coupler, outgoing feeders, metering and protection equipment depending on the project.
Sub Distribution Board
A Sub Distribution Board (SDB) receives power from an upstream distribution board and distributes it to a specific building section, floor, department, process area or group of loads.
SDBs help organize electrical distribution into manageable sections.
Applications include:
- Offices
- Factories
- Warehouses
- Commercial buildings
- Institutional buildings
- Production areas
Industrial Power Distribution Board
Industrial PDBs are designed for electrical distribution in manufacturing and process environments.
Depending on the application, they may supply:
- Production machinery
- Motors
- Pumps
- HVAC systems
- Compressors
- Utility equipment
- Lighting systems
- Process equipment
Industrial distribution boards should be designed after considering the electrical load, fault level, operating environment and maintenance requirements.
Commercial Power Distribution Board
Commercial distribution boards are used for electrical distribution in:
- Offices
- Shopping complexes
- Hotels
- Retail buildings
- Hospitals
- Institutional facilities
- Commercial spaces
The feeder arrangement can be customized according to the building’s electrical distribution scheme.
Customized Power Distribution Board
Every electrical installation has different requirements.
A customized PDB can be designed according to:
- Incoming supply
- Current rating
- Number of outgoing feeders
- Load type
- Fault level
- Protection requirements
- Metering
- Installation location
- Cable entry
- Future expansion
Main Components of a Power Distribution Board
The components used in a PDB depend on the electrical design and project specification.
Air Circuit Breaker
An ACB can be used as a main incomer or bus-coupler device in higher-current low-voltage distribution systems where its rating and protection functions are suitable.
Molded Case Circuit Breaker
MCCBs are commonly used for incoming and outgoing feeders where the required current and protection characteristics are suitable.
Miniature Circuit Breaker
MCBs can be used for smaller outgoing circuits and control or auxiliary loads where applicable.
Busbar System
Copper or aluminium busbars distribute electrical power within the panel.
Busbar sizing should be based on factors such as:
- Continuous current
- Short-circuit withstand requirement
- Temperature rise
- Installation arrangement
- Applicable design requirements
Isolators
Isolators provide a means of electrical isolation for maintenance or operational requirements.
Energy Meter
Energy and multifunction meters can be installed where monitoring of electrical parameters is required.
Depending on the selected meter, parameters may include:
- Voltage
- Current
- Frequency
- Power
- Power factor
- Energy
Protection Relays
Protection relays may be incorporated where additional protection functions are required by the system design.
Surge Protection Device
SPDs can be used where surge protection is required based on the electrical installation and protection philosophy.
Terminal Blocks
Terminal blocks provide organized termination for control and auxiliary wiring.
Protection Features
The protection system should be selected according to the electrical installation.
Depending on the design, a Power Distribution Board may include:
- Short-circuit protection
- Overload protection
- Earth-fault protection
- Over-voltage protection
- Under-voltage protection
- Phase-failure protection
- Surge protection
- Feeder isolation
- Metering and alarm functions
Not every PDB requires all of these functions. The final protection arrangement should be determined according to the electrical system and applicable design requirements.
Power Distribution Board for Industrial Applications
Industrial facilities often contain multiple electrical loads operating simultaneously.
A properly designed PDB can organize these loads into separate feeders.
For example:
Main PDB
→ Production Area
→ HVAC
→ Utility Loads
→ Lighting
→ Pumps
→ Compressor
→ Auxiliary Loads
Individual feeder protection makes it easier to isolate and maintain specific circuits according to the operating arrangement.
Power Distribution Board for Commercial Buildings
Commercial buildings generally have different categories of electrical loads.
A distribution system may supply:
- Lighting
- HVAC
- Elevators
- Pumps
- Fire systems
- Office equipment
- Common-area services
- Other building services
The PDB can be divided into appropriate outgoing feeders based on the building’s electrical design.
Power Distribution Board for Hospitals
Hospitals have electrical systems with different categories of loads and operational requirements.
Distribution boards may be used for suitable applications such as:
- HVAC
- Lighting
- Pumps
- Utility systems
- General electrical loads
- Building services
Critical or life-safety electrical systems require project-specific power architecture, redundancy and protection arrangements.
Power Distribution Board for Warehouses
Warehouses and logistics facilities may require distribution for:
- Lighting
- Material handling equipment
- Conveyors
- HVAC
- Pumps
- Battery charging
- Office areas
- Utility equipment
The number and rating of feeders should be selected according to the actual load schedule.
Power Distribution Board for Data Centers
Data centers require carefully engineered electrical distribution systems.
PDBs may form part of a larger electrical architecture involving:
- UPS systems
- Generators
- ATS/AMF systems
- Critical distribution
- Cooling systems
- Lighting
- Auxiliary systems
The distribution architecture should be designed according to the required redundancy, availability and protection philosophy.
Indoor and Outdoor Power Distribution Boards
Indoor PDB
Indoor distribution boards are installed inside electrical rooms, plant rooms, utility areas or other protected environments.
The enclosure and ventilation arrangement should be selected according to the installation environment.
Outdoor PDB
Outdoor distribution boards require additional consideration for environmental exposure.
Depending on the application, the design may consider:
- Enclosure construction
- IP protection
- Rain exposure
- Dust
- Temperature
- Solar exposure
- Cable entry
- Condensation
- Corrosion
The required IP rating and environmental protection should be specified according to the actual installation conditions.
Wall-Mounted and Floor-Mounted PDB
Wall-Mounted Distribution Board
Suitable for applications where the electrical load and physical arrangement allow a compact wall-mounted configuration.
Floor-Mounted Distribution Board
Floor-mounted construction is generally suitable for larger distribution systems with multiple feeders, larger breakers and higher internal equipment density.
The choice depends on the electrical and mechanical requirements of the project.
Power Distribution Board with Metering
Metering can be incorporated when monitoring of electrical parameters is required.
Depending on the selected meter, monitoring may include:
- Voltage
- Current
- Frequency
- Active power
- Reactive power
- Apparent power
- Power factor
- Energy consumption
Communication features can also be considered where integration with an energy-management or monitoring system is required.
Power Distribution Board with APFC
Where the electrical installation has a power-factor requirement, a PDB can be coordinated with an Automatic Power Factor Correction (APFC) system.
The PDB handles electrical distribution, while the APFC system provides reactive-power compensation.
For installations with significant harmonic-producing loads, capacitor selection should be evaluated carefully and a detuned or other suitable configuration may be required.
See also: Power Factor Correction Panel Manufacturer in Delhi NCR
PDB vs PCC vs MCC
Understanding the difference between electrical panels helps select the right solution.
| Panel | Main Function | Typical Loads |
|---|---|---|
| PDB | Power distribution | Multiple electrical circuits |
| PCC | Central power distribution/control | Large electrical feeders |
| MCC | Motor control | Motors and motor-driven equipment |
| APFC | Reactive-power compensation | Capacitor banks |
| PLC Panel | Automation/control | Machines and processes |
In a large industrial facility, these panels can operate together as part of the overall electrical system.
How to Select the Right Power Distribution Board?
Before finalizing a PDB, the following information should be evaluated.
Incoming Supply
Determine:
- Voltage
- Phase
- Frequency
- Available fault level
- Transformer/generator source
Total Load
Prepare the connected-load and maximum-demand information.
Number of Feeders
Identify the required outgoing circuits and their ratings.
Feeder Types
Determine whether feeders will supply:
- Motors
- Lighting
- HVAC
- Pumps
- Machinery
- Distribution boards
- Other electrical equipment
Short-Circuit Level
The panel’s short-circuit withstand and protective devices should be selected according to the system fault level.
Installation Environment
Determine whether the panel will be installed:
- Indoors
- Outdoors
- In an electrical room
- In a plant
- In a dusty environment
- In a corrosive environment
Future Expansion
If additional feeders may be required later, adequate panel space and design provisions should be considered.
Power Distribution Board Technical Specifications
The final specifications should always be customized according to the approved electrical design.
| Parameter | Configuration |
|---|---|
| Panel Type | PDB / MDB / SDB |
| System | Single Phase / Three Phase |
| Voltage | As per project |
| Frequency | As per project |
| Incomer | ACB / MCCB / As specified |
| Outgoing Feeders | Customized |
| Busbar | Copper / Aluminium |
| Current Rating | As required |
| Short-Circuit Rating | As per system design |
| Metering | Optional |
| Protection | As required |
| Installation | Indoor / Outdoor |
| Mounting | Wall / Floor Mounted |
| Cable Entry | Top / Bottom |
| Communication | Optional |
| APFC Integration | Optional |
| Enclosure | As specified |
Note: Do not publish a blanket “6300A / 690V” specification unless your actual design, components and tested/approved construction support those ratings. The existing page currently advertises up to 6300A and 690V.
Power Distribution Board Manufacturing Process
Requirement Analysis
The electrical load schedule, incoming supply, outgoing feeders and project requirements are reviewed.
Electrical Engineering
The distribution arrangement, single-line diagram, feeder configuration and protection scheme are developed.
Component Selection
Breakers, busbars, meters, protection devices and other components are selected according to the approved design.
Panel Fabrication
The enclosure and structural assembly are fabricated according to the required dimensions and installation arrangement.
Busbar Assembly
The busbar system is installed and arranged according to the electrical design.
Component Assembly
Breakers, meters, protection devices, terminals and auxiliary components are installed.
Wiring
Control and auxiliary wiring is completed according to the approved drawings.
Inspection and Testing
Testing should be performed according to the project requirements and available facilities.
Possible checks include:
- Visual inspection
- Wiring verification
- Continuity testing
- Insulation resistance testing
- Functional checks
- Metering verification
- Protection/control checks
- Interlock verification where applicable
Specific tests such as high-voltage testing or load testing should be mentioned only when they are actually performed as part of your documented manufacturing/testing process. The current page lists these tests.
Power Distribution Board Price
The price of a Power Distribution Board depends on its electrical and mechanical configuration.
Major cost factors include:
- Total current rating
- Number of feeders
- ACB/MCCB/MCB selection
- Busbar material
- Busbar rating
- Short-circuit rating
- Metering
- Protection relays
- Panel dimensions
- Indoor/outdoor construction
- IP requirement
- Cable entry
- APFC integration
- Communication
- Component brands
- Quantity
Get an Accurate PDB Quotation
For an accurate quotation, provide:
Load Schedule + SLD + Incoming Supply + Outgoing Feeder List + Required Current Ratings + Installation Location
You can also send an existing panel photograph or electrical drawing for initial evaluation.
Power Distribution Board Manufacturer in Delhi NCR
E-Tech Power manufactures customized Power Distribution Boards for industrial, commercial and infrastructure applications in Delhi NCR.
Our primary service areas include:
Delhi | Noida | Greater Noida | Ghaziabad | Faridabad | Gurugram
Additional locations can be served according to project requirements and installation scope.
Power Distribution Board Manufacturer in Noida
E-Tech Power provides customized PDB, MDB and SDB solutions for industrial and commercial electrical distribution requirements in Noida.
Panels can be designed according to the required feeder arrangement, protection scheme, metering and installation environment.
Power Distribution Board Manufacturer in Greater Noida
E-Tech Power Engineers operates from:
Plot No. 91, Udyog Kendra-II, Ecotech-III, Greater Noida – 201306
The company provides customized electrical panel and power distribution solutions for suitable industrial and commercial applications.
Power Distribution Board Manufacturer in Ghaziabad
Customized PDB and distribution panel solutions can be designed for industrial, commercial and utility applications in Ghaziabad and nearby industrial areas.
Power Distribution Board Manufacturer in Faridabad
E-Tech Power can provide customized power distribution boards for suitable industrial and commercial applications in Faridabad.
Power Distribution Board Manufacturer in Gurugram
Customized PDB solutions can be developed for industrial facilities, commercial buildings, warehouses and infrastructure applications in Gurugram.
Why Choose E-Tech Power?
Application-Based Design
The distribution board is designed around the actual electrical load, feeder requirements and installation conditions.
Customized Configuration
PDBs can be customized for:
- Incomer arrangement
- Outgoing feeders
- Busbar rating
- Metering
- Protection
- Enclosure
- Cable entry
- Installation environment
Organized Electrical Distribution
Proper feeder segregation and labeling can simplify operation, inspection and maintenance.
Protection-Oriented Design
Protection devices are selected according to the electrical system and connected loads.
Engineering Support
Electrical design, panel assembly, testing and project support can be provided according to the agreed scope.
Frequently Asked Questions
What is a Power Distribution Board?
A Power Distribution Board is an electrical panel that receives power from an incoming source and distributes it to multiple outgoing circuits while providing suitable protection and isolation.
What is the difference between PDB and MDB?
PDB is a general term for a power distribution board. An MDB generally refers specifically to the main distribution board at the primary distribution level of a facility.
What is the difference between MDB and SDB?
An MDB is generally located at the main distribution level, while an SDB receives power from an upstream board and distributes it to a specific section or group of loads.
Can you manufacture customized PDB panels?
Yes. PDBs can be customized according to current rating, number of feeders, protection, metering, enclosure, installation environment and project requirements.
Can APFC be integrated with a PDB?
Yes, APFC can be coordinated with a PDB where power-factor correction is required. The exact arrangement depends on the electrical system.
Can a PDB be used outdoors?
Yes, an outdoor PDB can be designed where required, but enclosure construction, IP protection, environmental exposure, temperature, cable entry and corrosion considerations should be evaluated.
What information is required for a PDB quotation?
The most useful information includes:
Load Schedule + SLD + Incoming Supply + Outgoing Feeder Details + Current Ratings + Installation Location
What is the price of a Power Distribution Board?
PDB pricing depends on the current rating, number of feeders, breaker selection, busbar configuration, metering, protection, enclosure and other project requirements.
Do you provide installation and commissioning?
Installation and commissioning support can be provided according to the agreed project scope.
